Panther Series

The Panther CNC Router is designed with a small footprint yet provides a generous work envelope. It offers the best platform for a small shop looking to cut full size sheets.

The Panther comes in three table sizes: 4′ x 4′  4’ x 8’ and 5 ‘ x 10’

  • Heavy-Duty Steel Construction for rigidity and vibration free machining
  • 6 HP HSD ATC Spindle for with an 8 Position Automatic Tool Changer
  • Helical Rack and Pinion Drive System for high acceleration, smooth running and high dimensional accuracy
  • Digital Servo Motors on All Axes with Planetary Gearboxes for more power and speed
  • Phenolic Vacuum Table Top – for material hold down
  • Pop-up Locating Pins – for quick and accurate material positioning
  • Made in the USA

Price

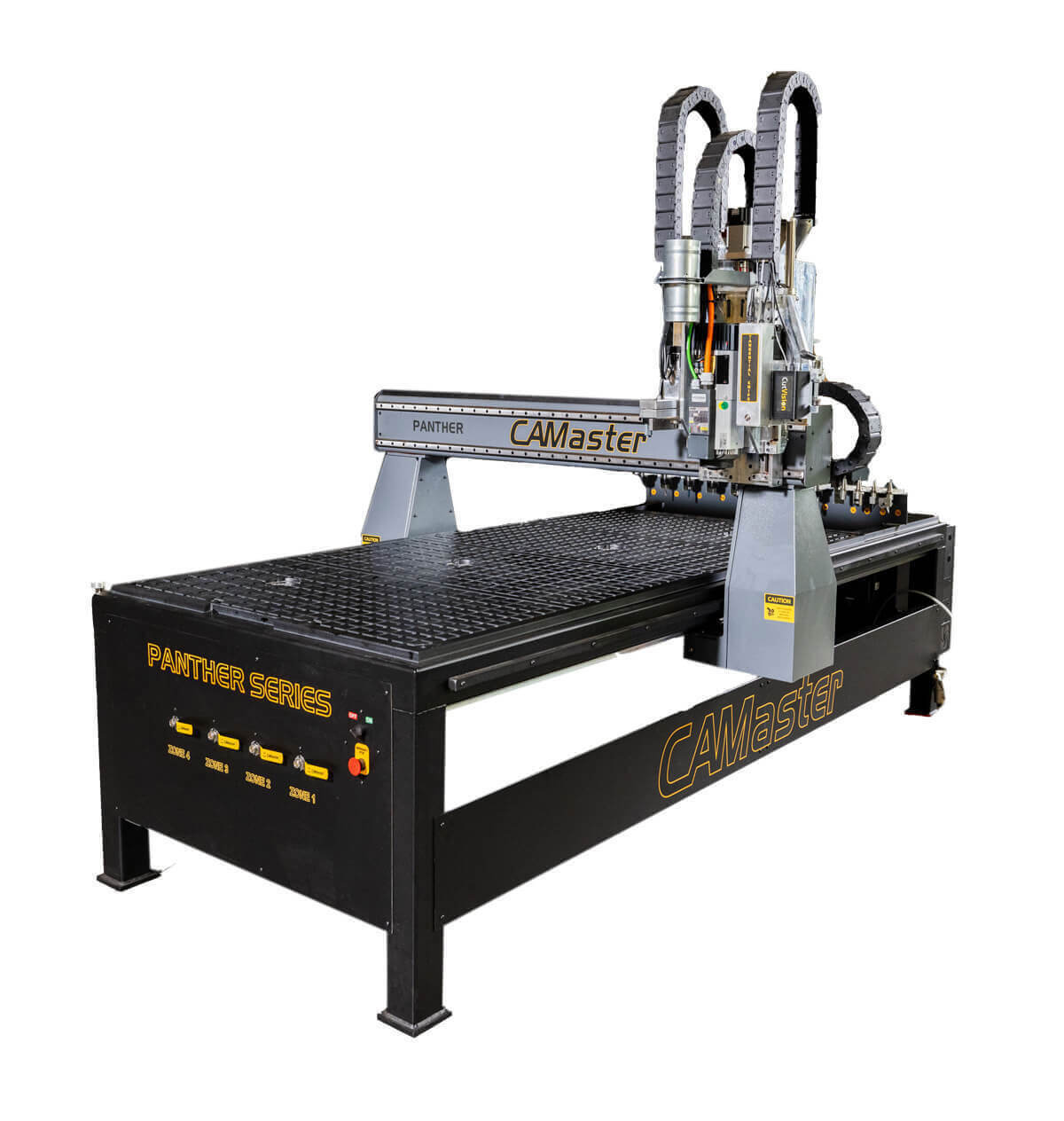

panther main product Image

Note: shown with optional features

The Panther CNC is a premium-grade industrial CNC router, available in 4’x4′, 4’x8′, and 5’x10′ configurations, expanding the possibilities for your shop.

The Panther machine includes an automatic tool changer and can be further upgraded to include tangential knives, vision registration camera, laser engraver, misting unit and much more.

The Panther is shipped completely built and tested from our facility in Cartersville, GA USA

STANDARD FEATURES

Panther machines come standard with:

  • 5 HP HSD Spindle
  • All-Steel Welded Frame
  • All-Steel Gantry and Supports
  • AC Digital Servos with Absolute Encoders
  • THK 25 MM Precision Rails & Bearings
  • High Precision Planetary Gearboxes
  • Phenolic Zoned Vacuum Table Top
  • Digital PLC Controller
  • Failsafe Z Motor Brake System
  • Control PC that runs Windows 11 and a 19” LED Monitor
  • Z-Zeroing Plate
  • Vectric VCarve Pro Software
  • Free Tech Support and for Life of the Machine
  • Free Live Direct Online Technician

SPEEDS & REPEATABILITY

Rapid Speeds1,800 IPM
Cut Speeds1,100 IPM
Repeatability0.001” (+/-)

TABLE SIZE

PT-40449” X 49” X 10”
PT-40849” X 97” X 10”
PT-51061” X 121” X 10”

FOOTPRINT SIZE

PT-40470” X 81”
PT-40870” X 133 ”
PT-51082" X 145"

SHIPPING WEIGHT

PT-4041900 lbs.
PT-4082900 lbs.
PT-5103500 lbs.

Options and Upgrades

Machine Layout

Preparing For Your Machine

Machine Manual

SmartCore has completely revolutionized the way our CNC routers perform. It is a combination of decades of our knowledge and experience in the CNC machine tool sector.

Advantages of the SmartCore system:

  • Next Generation CNC Controller with a built-in high-speed PLC processor that provides fast interpolation times and offers more standard features than any other CNC controller.
  • Completely digital system, from command to feedback, with all the involved modules communicating via digital protocols, resulting in vast improvements in the machine data flow and a significant immunity to noise.
  • Super-Fast. Equipped with the latest servo communication bus, EtherCAT technology at super-fast 100 Mb/s speeds.
  • Open Architectural Hardware and Software – can work with any CAD/CAM available.
  • Equipped with an operator friendly machine interface with intuitive and easy to use screens, simplified part setup, full-featured file editing, and tool path simulation.
  • High reliability and easy maintenance. Hardware is equipped with clear diagnostics that provides a stable platform for maximum machine availability.

SmartCore incorporates all the industry’s latest technology and is built for the most demanding applications. It provides the best performance and reliability in its class!
