Stinger

The CAMaster Stinger CNC is an Industrial Grade CNC Router that opens multiple avenues for your shop.

Whether you’re a seasoned professional or just starting out, the Stinger CNC is the perfect tool to help you achieve your goals.

The Stinger comes in two sizes: 4’ x 4’ and a 4’ x 8’

  • Heavy-Duty Steel Frame Construction for rigidity and vibration free machining
  • Digital Steppers on All Axes with Anti-Backlash Drive system for reliable performance and cut quality. Servo upgrade available
  • 3.5 HP Variable Speed Router with optional HSD spindle upgrades available
  • 8″ Gantry Clearance for more cutting room
  • Configurable – multiple optional features available
  • Fully Assembled and ready to run
  • Made in the USA

Starting Price

CNC Router Machine

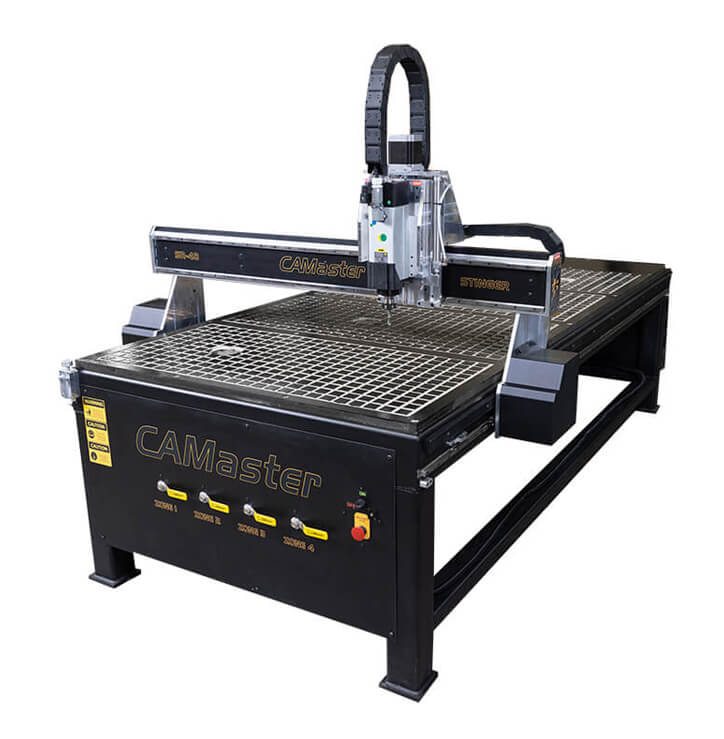

Note: shown with optional features

The Stinger CNC is an industrial CNC router, available in 4’x4′, 4’x8’ configurations.

The Stinger machine can be upgraded to include HSD spindles, vacuum hold down, laser engraver, misting unit and much more.

The Stinger is shipped completely built and tested from our facility in Cartersville, GA USA and like all other CAMaster machines, the Stinger comes fully assembled, tested, and ready to run.

STANDARD FEATURES

Stinger machines come standard with:

  • Welded Steel Frame
  • Control PC that runs Windows 11 PRO with 19” Monitor, Keyboard, & Mouse
  • Vectric VCarve Pro Design Software
  • High Definition Digital Microstep Drive & Motor System
  • Router On/Off via G-Code and Control PC
  • Fully Enclosed E-Chain on all Axes
  • Dust Boot
  • Centroid PLC Controller with Ethernet
  • THK Heavy Duty Precision Rails & Bearings on all Axes
  • Limit Switches on all Axes
  • Emergency Stop
  • Z-Zeroing Plate
  • Free Tech Support for the Life of the Machine
  • Free Remote Support Technician for the Life of the Machine

SPECIFICATIONS

Rapid Speeds1,400 IPM
Cut Speeds400 IPM
Repeatability0.002” (+/-)

TABLE SIZES

SR-4449” X 49” X 7”
SR-4849" X 97" X 7"

MACHINE FOOTPRINT

SR-4467” X 78”
SR-4867" X 126"

SHIPPING WEIGHT

SR-441750 lbs.
SR-482200 lbs.
